Hydraulic fittings
Name：3-2B(BSP)
Details

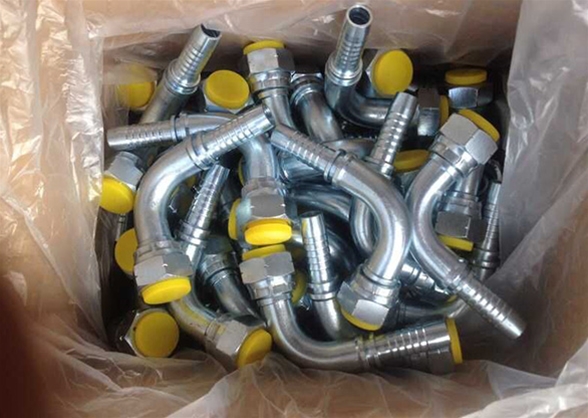

| 3-②B 90 DEGREE BSP FEMALE 60 DEGREE CONE | ||||||
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | C | S2 | H | ||
| 22691-04-04 | G1/4"-19 | 6 | 4 | 5.5 | 19 | 36.5 |
| 22691-06-06 | G3/8"-19 | 10 | 6 | 6.3 | 22 | 43 |
| 22691-08-08 | G1/2"-14 | 12 | 8 | 7.5 | 27 | 51 |
| 22691-10-10 | G5/8"-14 | 16 | 10 | 9.5 | 30 | 56 |
| 22691-12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 | 66 |
| 22691-16-16 | G1"-11 | 25 | 16 | 117.7 | 41 | 73.8 |
| 22691-20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 | 87 |
| 22691-24-24 | G1.1/2"-1 | 40 | 24 | 13 | 55 | 102 |
| 22691-32-32 | G2"-11 | 50 | 32 | 16 | 70 | 125.3 |
| 22692-08-08 | G1/2"-14 | 12 | 8 | 7.5 | 27 | 51 |
| 22692-12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 | 66 |
| 22692-16-16 | G1"-11 | 25 | 16 | 11.7 | 14 | 79.8 |
| 22692-20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 | 87 |
| 22692-24-24 | G1.1/2"-11 | 40 | 24 | 13 | 55 | 102 |
| 22692-32-32 | G2"-11 | 50 | 32 | 16 | 70 | 125.3 |
