Hydraulic fittings

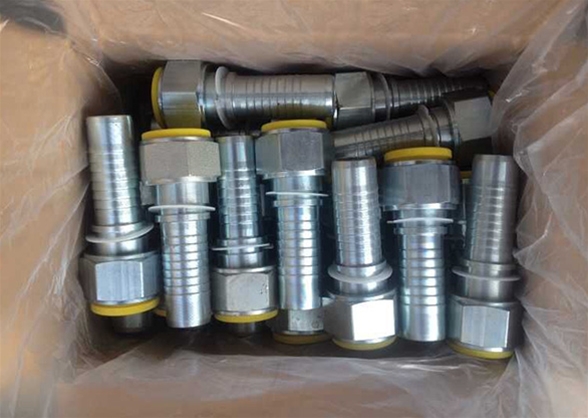

Name：3-2A(BSP)
Details
| 3-②A BSP FEMALE 60 DEGREE CONE | |||||
| Part No. | Thread E | Hose Bore | Dimensions | ||
| DN | DASH | C | S2 | ||
| 22611-04-04 | G1/4"-19 | 6 | 4 | 5.5 | 19 |
| 22611-05-05 | G1/4"-19 | 5 | 4 | 6 | 20 |
| 22611-06-06 | G3/8"-19 | 10 | 6 | 6.3 | 22 |
| 22611-08-08 | G1/2"-14 | 12 | 8 | 7.5 | 27 |
| 22611-10-10 | G5/8"-14 | 16 | 10 | 9.5 | 30 |
| 22611-12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 |
| 22611-16-16 | G1"-11 | 25 | 16 | 11.7 | 41 |
| 22611-20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 |
| 22611-24-24 | G1.1/2"-11 | 40 | 24 | 13 | 55 |
| 22611-32-32 | G2"-11 | 50 | 32 | 16 | 70 |
| 22612-08-08 | G1/2"-14 | 12 | 8 | 7.5 | 27 |
| 22612-12-12 | G3/4"-14 | 20 | 12 | 10.9 | 32 |
| 22612-16-16 | G1"-11 | 25 | 16 | 11.7 | 41 |
| 22612-20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 |
| 22612-24-24 | G1.1/2"-11 | 40 | 24 | 13 | 55 |
| 22612-32-32 | G2"-11 | 50 | 32 | 16 | 70 |
