3-3B(JIC)

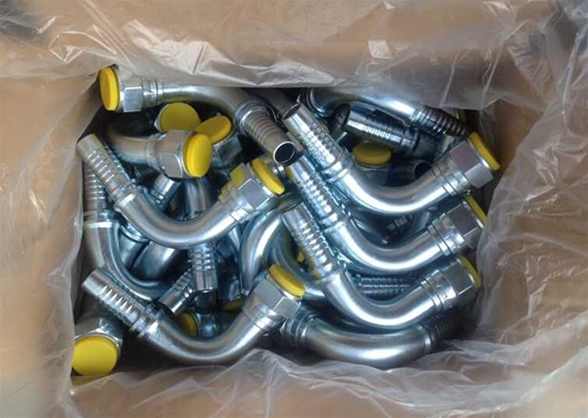

| 3-③B 90 DEGREE JIC FEMALE 74 DEGREE CONE SEAT | ||||||
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | C | S2 | H | ||
| 26791-04-04 | 7/16"X20 | 6 | 4 | 9 | 33.5 | 15 |
| 22691-06-06 | G3/8"-19 | 10 | 6 | 6.3 | 22 | 43 |
| 26791-06-06 | 9/16"X18 | 10 | 6 | 10.5 | 39.3 | 19 |
| 26791-08-08 | 3/4"X16 | 12 | 8 | 11 | 47 | 24 |
| 26791-10-10 | 7/8"X14 | 16 | 10 | 13 | 52.5 | 27 |
| 26791-12-12 | 1.1/16"X12 | 20 | 12 | 15 | 63.5 | 32 |
| 22691-20-20 | G1.1/4"-11 | 32 | 20 | 11 | 50 | 87 |
| 26791-16-16 | 1.5/16X12 | 25 | 16 | 16 | 70 | 41 |
| 26791-20-20 | 1.5/8"X12 | 32 | 20 | 17 | 82.5 | 50 |
| 26791-24-24 | 1.7/8"X12 | 40 | 24 | 20 | 97.5 | 55 |
| 26791-32-32 | 2.1/2"X12 | 50 | 32 | 23.5 | 118.8 | 75 |
| 26792-12-12 | 1.1/16"x12 | 20 | 12 | 15 | 32 | 63.5 |
| 26792-16-16 | 1.5/16"x12 | 25 | 16 | 16 | 41 | 70 |
| 26792-20-20 | 1.5/8"x12 | 32 | 20 | 17 | 50 | 80.5 |
| 26792-24-24 | 1.7/8"x12 | 40 | 24 | 20 | 60 | 97.5 |
| 26792-32-32 | 2.1/2"x12 | 50 | 32 | 23.5 | 75 | 113.3 |
