Hydraulic fittings

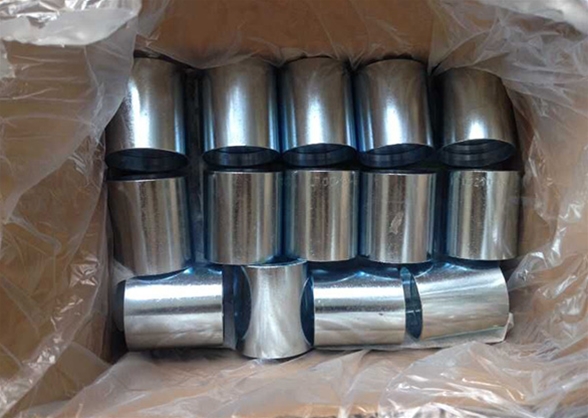

Name：3-1 ferrule
Details
| 3-① Ferrule for R1R2 | ||||
| Description | Part No. | Hose Bore | Dimensions (L) | |
| DN | Dash | |||
| SAE 100 R2AT | 00210-04 | 6 | 04 | 30 |
| 00210-05 | 8 | 05 | 31 | |
| 00210-06 | 10 | 06 | 32 | |
| 00210-08 | 12 | 08 | 34 | |
| 00210-10 | 16 | 10 | 37 | |
| 00210-12 | 20 | 12 | 43 | |
| 00210-16 | 25 | 16 | 50 | |
| 00210-20 | 32 | 20 | 59 | |
| 00210-24 | 40 | 24 | 74 | |
| 00210-32 | 50 | 32 | 78 | |
| 3-① Ferrule for R1R2 | ||||
| Description | Part No. | Hose Bore | Dimensions (L) | |
| DN | Dash | |||
| SAE 100 R12 4SP | 00400-06 | 10 | 06 | 39 |
| 00400-08 | 12 | 08 | 41 | |
| 00400-10 | 16 | 10 | 43 | |
| 00400-12 | 20 | 12 | 51 | |
| 00400-16 | 25 | 16 | 61.5 | |
| 00400-20 | 32 | 20 | 67.5 | |
| 00400-24 | 40 | 24 | 75 | |
| 00400-32 | 50 | 32 | 79 | |
