R1AT
| Suntech-flex R1AT- R2AT 1SN 2SN hydraulic hose (5-1) | ||||||||
| Type | Size | I.D. | O.D. | W.P. | B.P. | Weight | ||
| dash | Inch | mm | mm | Bar | Psi | Bar | Kg/m | Lb/ft |
| R1AT-04 | 1/4" | 6.4X13.0 | 13 | 225 | 3263 | 900 | 0.25 | 0.16 |
| R1AT-05 | 5/16" | 8 | 14.7 | 215 | 3118 | 860 | 0.3 | 0.2 |

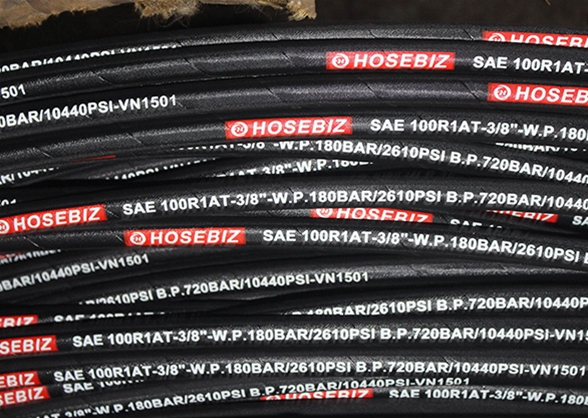

| R1AT-06 | 3/8" | 9.5 | 17 | 180 | 2610 | 720 | 0.35 | 0.24 |
| R1AT-08 | 1/2" | 12.7 | 20.1 | 160 | 2320 | 640 | 0.42 | 0.28 |
| R1AT-10 | 5/8" | 15.9 | 23.2 | 130 | 1885 | 520 | 0.52 | 0.35 |
| R1AT-12 | 3/4" | 19 | 27.2 | 105 | 1523 | 420 | 0.65 | 0.44 |
| R1AT-16 | 1" | 25.4 | 35.1 | 88 | 1276 | 350 | 0.95 | 0.64 |
| R1AT-20 | 1-1/4" | 31.8 | 42.8 | 63 | 914 | 252 | 1.15 | 0.77 |
| R1AT-24 | 1-1/2" | 38.1 | 49.6 | 50 | 725 | 200 | 1.5 | 1.0 |
| R1AT-32 | 2" | 50.8 | 62.5 | 40 | 580 | 160 | 1.9 | 1.28 |
| Type | Size | I.D. | O.D. | W.P. | B.P. | Weight | ||
| dash | Inch | mm | mm | Bar | Psi | Bar | Psi | Kg/m |
| R2AT-04 | 1/4" | 6.4 | 15.0 | 400 | 5800 | 1600 | 23200 | 0.38 |
| R2AT-05 | 5/16" | 8.0 | 16.7 | 350 | 5075 | 1400 | 20300 | 0.45 |
| R2AT-06 | 3/8" | 9.5 | 18.8 | 330 | 4785 | 1320 | 19140 | 0.53 |
| R2AT-08 | 1/2" | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 0.65 |
| R2AT-10 | 5/8" | 15.9 | 24.8 | 250 | 3625 | 1000 | 14500 | 0.76 |
| R2AT-12 | 3/4" | 19.0 | 28.9 | 215 | 3118 | 860 | 12470 | 0.95 |
| R2AT-16 | 1" | 25.4 | 37.5 | 165 | 2393 | 660 | 9570 | 1.28 |
| R2AT-20 | 1-1/4" | 31.8 | 47.3 | 125 | 1813 | 500 | 7250 | 2.16 |
| R2AT-24 | 1-1/2" | 38.1 | 53.5 | 90 | 1305 | 360 | 5220 | 2.58 |
| R2AT-32 | 2" | 50.8 | 66.8 | 80 | 1160 | 320 | 4640 | 3.30 |
| ①Inner tube: oil and abrasion, aging resistant synthetic rubber | ||||||||
| ②Reinforcement:1-2 wire braids Safety factor: 1:4 | ||||||||
| ③Cover: oil and weather resistant synthetic rubber Skive: Non-Skive cover | ||||||||
| ④Temperature range: -40°C up to +100°C with petroleum base hydraulic fluids | ||||||||
| ⑤Application:Carry hydraulic fluids,such as glycol, mineral oils, emulsion etc | ||||||||
